05 Logistics Heavy Forklifts HNF Series 20t-25t |

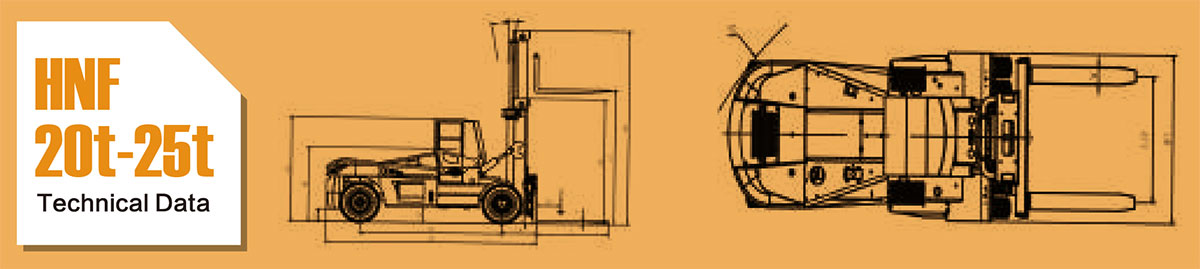

05 Logistics Heavy Forklifts HNF Series 20t-25t Technical Datas |
|
CVT Features The CVJ gearbox for heavy forklifts pioneered by our factory adopts a combination of mechanical and hydraulic transmission, which is a new torque transmission method in China. The torque output by the engine is first split into mechanical and static pressure parts for variable speed and torque transmission, and then merges to the output shaft. The transmission ratio is controlled by controlling the ratio of the mechanical and static pressure to achieve the speed ratio. Continuously adjustable. 1. Compared with the currently widely used AT (hydraulic) transmission system, it can save energy and reduce emissions by more than 25%. It is also more energy-efficient than hydrostatic transmission, especially suitable for large-tonnage forklifts of 16 tons or more; 2. Compared with the traditional gearbox, the starting torque is large, the acceleration is stable, the operation is easy and precise, the speed ratio is continuously variable, the comfort is the best, and the transmission efficiency is high; 3. The micro-motion function is more convenient for the driver to operate. Compared with the traditional micro-motion function, it has the advantages of no power loss and low gearbox oil temperature. |
Item | Description | Unit | Design Value | |||
HNF-200 | HNF-220 | HNF-250 | HNF-250CVT | |||
Feature | Rated Load | Q(t) | 20 | 22 | 25 | 25 |
Load Center | c(mm) | 1250 | 1250 | 1250 | 1250 | |
Wheelbase | y(mm) | 4000 | 4000 | 4400 | 4400 | |
Weight | Weight | kgs | 32500 | 33500 | 35000 | 35000 |
Wheel Chassis | Tire Specifications: Front | 14.00-24-28PR | 14.00-24-28PR | 14.00-24-28PR | 14.00-24-28PR | |
Tire Specifications: Rear | 14.00-24-28PR | 14.00-24-28PR | 14.00-24-28PR | 14.00-24-28PR | ||
Wheels, Qty, Front/Rear (X-Drive Wheels) | 4/2 | 4/2 | 4/2 | 4/2 | ||
Wheel Distance: Front | b10(mm) | 2200 | 2200 | 2200 | 2200 | |
Wheel Distance: Rear | b11(mm) | 2390 | 2390 | 2390 | 2390 | |
Basic Dimension | Front/Back Inclination Angle of Mast/Fork Rack |
Degree(°) | 6/12 | 6/12 | 6/12 | 6/12 |
Height of Mast when Retracted |
h1(mm) | 3860 | 3860 | 3860 | 3860 | |
Standard Lifting Height | h3(mm) | 3500 | 3500 | 3500 | 3500 | |
Max. Lifting Height | h4(mm) | 5610 | 5610 | 5610 | 5610 | |
Overhead Guard Height (Cab Height) | h6(mm) | 3510 | 3510 | 3510 | 3510 | |
Total Length (including Fork Length) | l1(mm) | 8340 | 8340 | 9190 | 9190 | |
Distance from Vertical Front Surface of Fork to Rear End of Vehicle |
l2(mm) | 6345 | 6345 | 6745 | 6745 | |
Total Width | b1/b2(mm) | 3050 | 3050 | 3050 | 3050 | |
Fork Sizes | s/e(mm) | 2000*260*100 | 2000*260*100 | 2440*300*110 | 2440*300*110 | |
Fork Frame Width | b3(mm) | 3050 | 3050 | 3050 | 3050 | |
Min. Ground Clearance under Mast (Full Load) | m1(mm) | 300 | 300 | 300 | 300 | |
Min. Ground Clearance of Center of Wheelbase (Full Load) | m2(mm) | 420 | 420 | 420 | 420 | |
Min. Turning Radius | Wa(mm) | 6250 | 6250 | 6700 | 6700 | |
Performances | Operating Speed (Full Load/No Load) | km/h | 26/30 | 26/30 | 25/29 | 25/29 |
Max. Lifting Speed (Full Load/No Load) | mm/s | 260/270 | 260/270 | 260/270 | 260/270 | |
Max. Descent Speed (Full Load/No Load) | mm/s | 310/260 | 310/260 | 315/260 | 315/260 | |
Traction | kN | 170 | 170 | 170 | 170 | |
Gradeability (Full Load/No Load) | % | 20/22 | 20/22 | 20/21 | 20/21 | |
Service Brake | Hydraulic Clamp Disc Type |
Hydraulic Clamp Disc Type |
Hydraulic Clamp Disc Type |
Hydraulic Clamp Disc Type |
||
Internal Combustion Engine |
Brand/Model | Option #1 | China Weichai | China Weichai | China Weichai | China Weichai |
WP10G220E343 | WP10G220E343 | WP10G220E343 | WP10G220E343 | |||
Option #2 | Dongfeng Cummins | Dongfeng Cummins | Dongfeng Cummins | |||
6CTA8.3-C215 II | 6CTA8.3-C215 II | 6CTA8.3-C240 II | ||||
Option #3 | Guangxi Cummins | Guangxi Cummins | Guangxi Cummins | |||
OSL9.3-C220 III | OSL9.3-C220 III | OSL9.3-C220 III | ||||
Cylinder No. | 6 | 6 | 6 | |||
Others | Transmission Gear Number (Front/Rear) | 2/1 | 2/1 | 2/1 | ||
Attachments Working Pressure | MPa | 18 | 18 | 18 | 18 | |
Amount of Oil for Attachments | L/min | 80 | 80 | 80 | 80 | |
Note: Due to technical improvements, the datas may not match the products. If there is any discrepancy, please refer to the products, that is, the above datas are subject to change without prior notice. |
